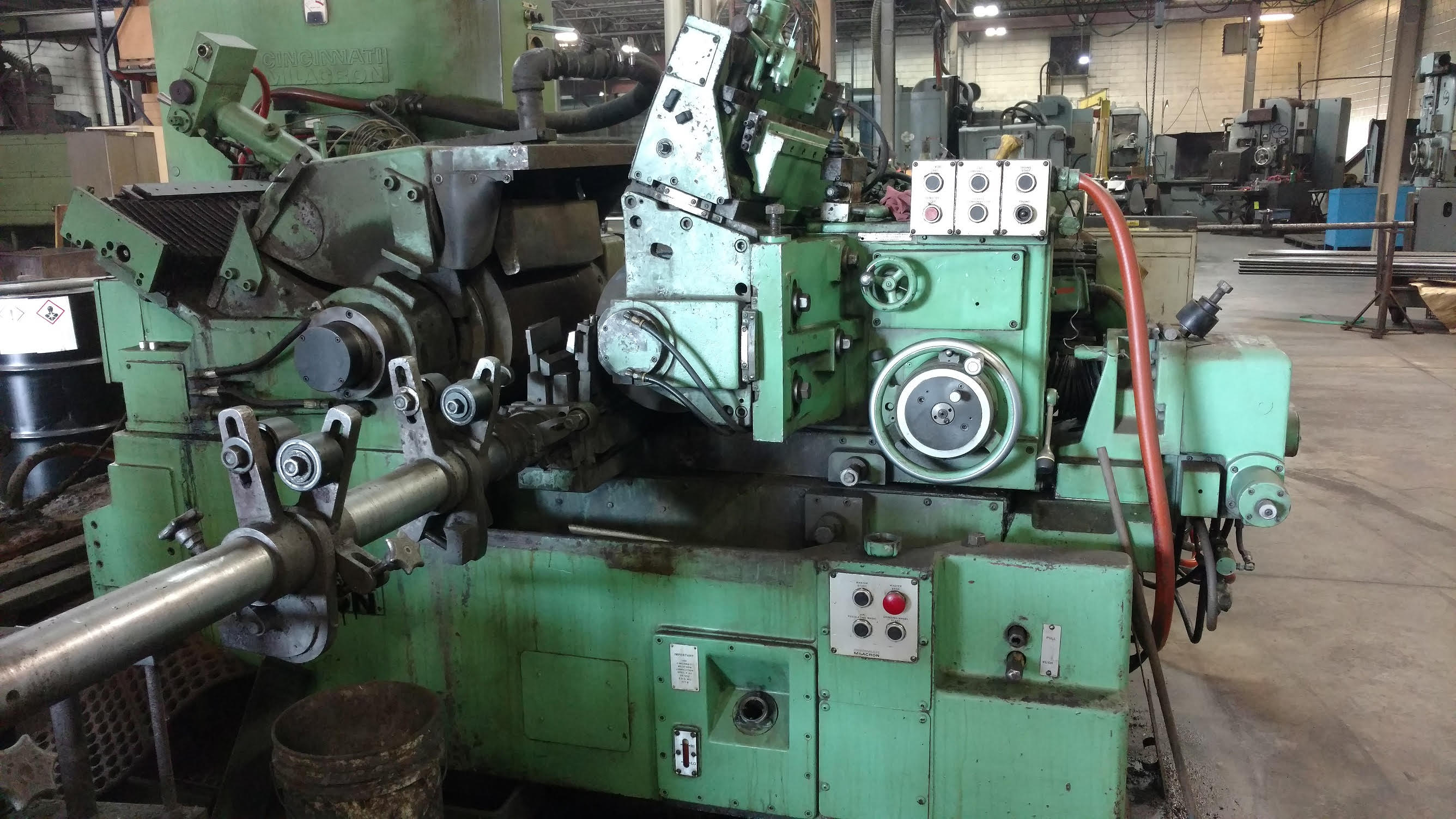

Cincinnati 375-20 Twin Grip Centerless Grinder

Overview

Cincinnati 375-20 Twin Grip Centerless Grinder
CATALOGUE SPECIFICATIONS:
Work Diameter Capacity Maximum (With New Wheel)…….. 6″
Work Diameter Capacity Nominal……………………. 1/2″ to 3″
Grinding Wheel Diameter, Maximum………………….. 24″
Grinding Wheel Diameter, Minimum………………….. 16″
Grinding Wheel Width, Maximum…………………….. 20″
Grinding Wheel Width, Minimum…………………….. 1″
Grinding Wheel Hole Diameter……………………… 12″
Regulating Wheel Diameter, Maximum………………… 14″
Regulating Wheel Diameter, Minimum………………… 10.25″
Regulating Wheel Width, Maximum…………………… 20″
Regulating Wheel Width, Minimum…………………… 1″
Regulating Wheel Hole Diameter……………………. 6″
Regulating Wheel Speeds (Variable)………………… 11 – 300 RPM
Grinding Wheel Motor…………………………….. 75 HP
Regulating Wheel Motor…………………………… 2 HP
Hydraulic System Motor…………………………… 2 HP

EQUIPPED WITH:

20″ Thru-Feed Workrest
6″ Diameter Regulating Wheel Spindle
Outboard Bearing Support On Grinding & Regulating Wheel Spindles
Hydraulic Profile Grinding Wheel Truing
Hydraulic Profile Regulating Wheel Truing
Attached Electrical Panel

24′ In & Out Heavy Duty Bar Fixture Available

Approximate Machine Dimensions……………………. 114″ x 158″
Approximate Machine Height……………………….. 96″
Approximate Machine Weight……………………….. 28,000 LBS
