Landis 1R Universal OD Grinder w/ ID Attachment

Overview

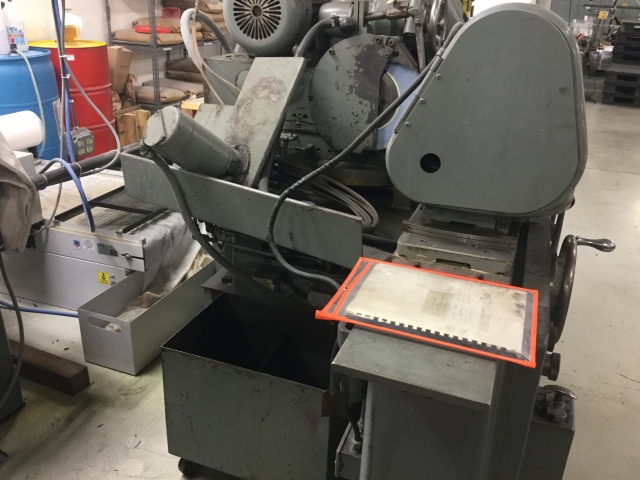

(1) USED LANDIS 10” X 20” 1R UNIVERSAL CYLINDRICAL GRINDER W/ ID ATTACHMENT

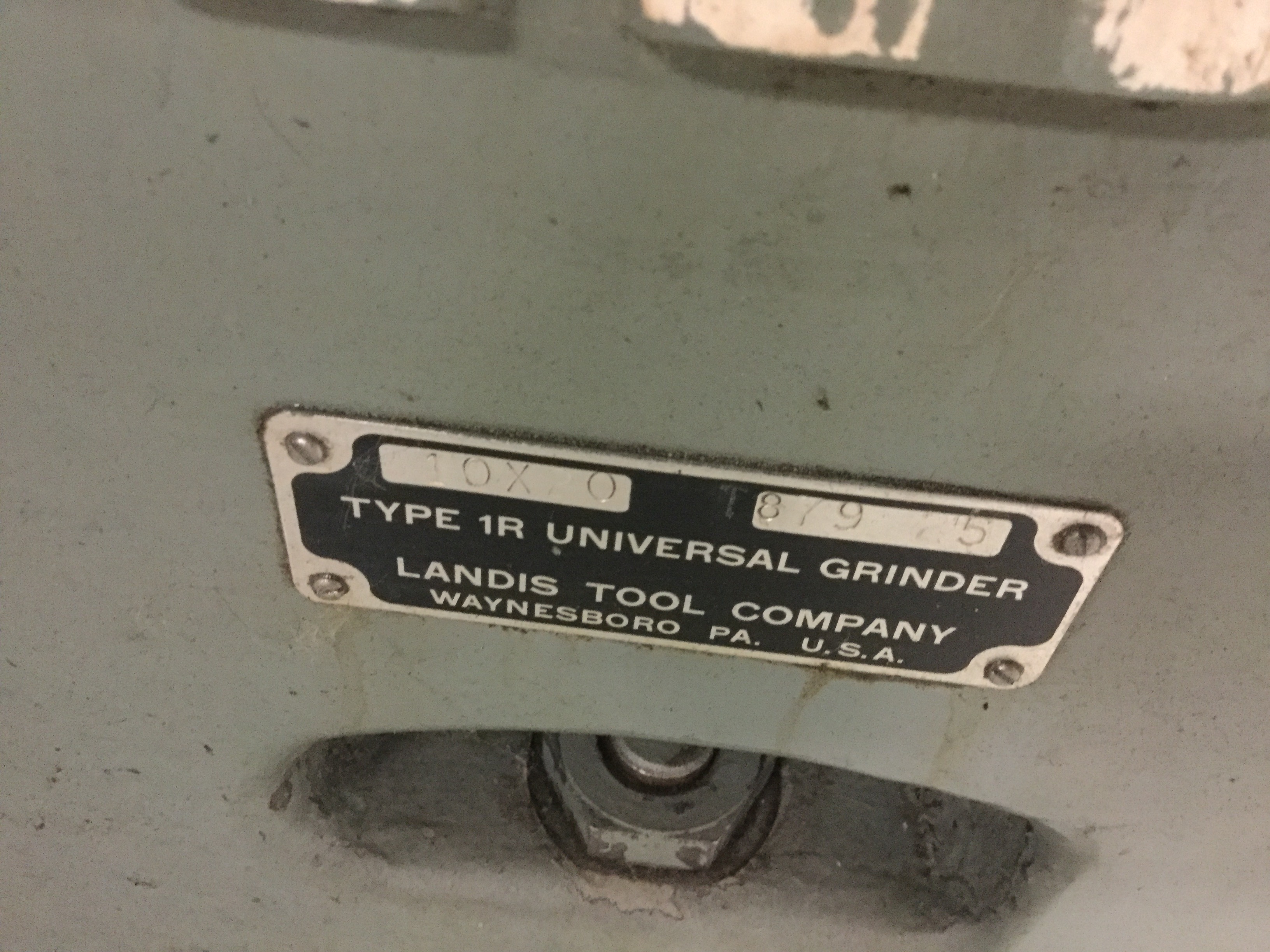

Serial Number: 879 – 25

SPECIFICATIONS:
Nominal work swing: 10”
Nominal distance between centers: 20”
Table traverse speed: 2 to 240 IPM
Grinding wheel size: 12” diameter x 1” wide x 5” hole
Grinding wheel max width: 1.5”
Grinding wheel spindle motor: 5 HP
Workhead speeds: 30 to 150 RPM
Grinding wheelhead swivel: upper & lower : 90 Degrees each way
Headstock center: #10 Jarno
Footstock center: #6 Jarno
Footstock center movement: lever operated
Diameter of hole in spindle: 1”
Headstock swivel: 120 Degrees
Headstock spindle nose: 5A-2

EQUIPPED WITH:
Swing Down ID Spindle
Plunge Feed
Table Traverse
Tarry timers left and right reversal
Attached electrical panel – 220 Volt
Coolant Tank & Pump
